10172010 Empennage (Build Session 10)

Build Session 10, 10172010, 1.5 hours, 24 total

Empennage, Rudder Page 07-02 and 07-03

Completed through Step 07-03 and stopped to Prime contact parts.

Rivet Count 63 Solid 347 Pulled

Trial fitting rudder spar caps and hinge brackets


Trial fitting the rudder control horn



Fitting the rudder spar to the vertical stabilizer to check hardware and clearance, send ing question to Vans re the gap seen below, the plans allow for only one washer between the brackets. I don't think their should be a gap otherwise it will pinch when tightened, may be by design but it does not look right to me. (Note the spar holes and the brackets were pre-drilled and are self aligning)

Priming for assembly



10162010 Empennage (Build Session 9)

Build Session 9, 10162010, 1.5 hours, 22.5 total

Empennage, Rudder Page 07-02

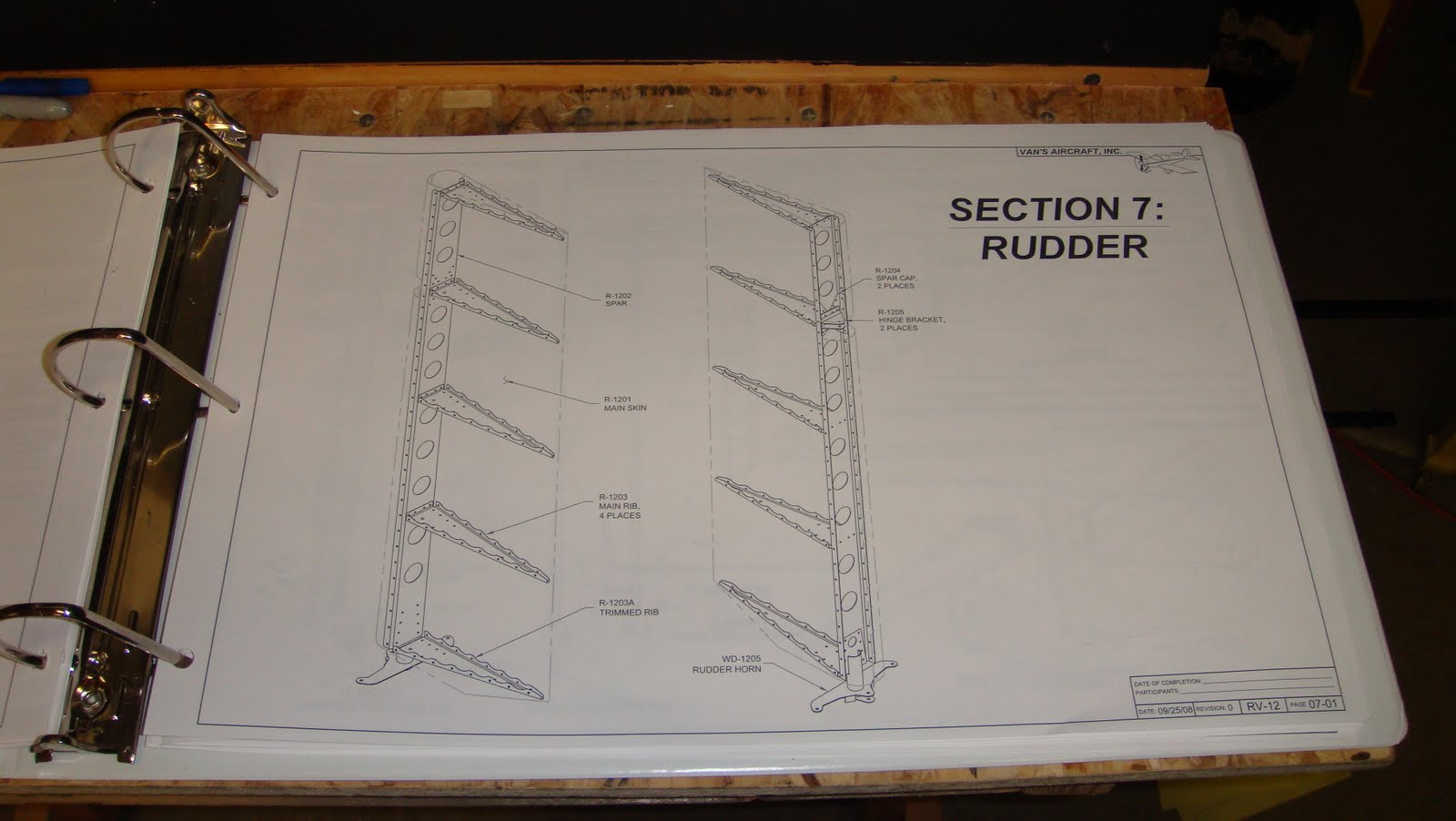

Starting Section 7 Rudder
Completed Page 07-02 Steps 1 - 8

Rivet Count 63 Solid 347 Pulled


Match drilling the Ruder Spar caps for the upper hinge bracket assemblies where the rudder attaches to the vertical stabilizer


Saturday, October 16, 2010

10152010 Empennage (Build Session 8)

Build Session 8, 10152010, 4 hours, 21 total

Empennage, Vertical Stabilizer Page 06-06 and 06-07

Vertical Stabilizer complete!

Rivet Count 63 Solid 347 Pulled

Dimpling the Nutplates used on the VS Skin to attach the VS Fwd. Skin
The hand squeezer is mounted in the vice to give more leverage.

VS Fwd Skin Dimpled and nutplates attached partiallly


VS Skin is clecoed in place and ready for riveting

One side down...


Second side in process


Cool Shot


Rudder Brackets installed


and.... We have a recognizable airplane part, only 12, 153 rivets left to go.


10152010 Empennage (Build Session 7)

Build Session 7, 10152010, 1.5 hours, 17 total

Empennage, Vertical Stabilizer Page 06-05 and 06-06

Completed through Page 06-06 Steps 1,3,5 on VS1204 Fwd Skin

Rivet Count 27 Solid 83 Pulled

Riveting in the Lower Spar Caps on the VS Spar




Holes Dimpled in the VS1204 Fwd Skin for the counter sunk screw attachment



10142010 Empennage (Build Session 6)

Build Session 6, 10142010, 2.5 hours, 15.5 total

Empennage, Vertical Stabilizer Page 06-05

Completed through Page 06-05 Steps 3 & 4

Rivet Count 27 Solid 11 Pulled

Primed the Vertical Stabilizer Spar and rib mating surface as well as the skin mating surfaces of the ribs.




Building the Vertical Stabilizer Skeleton






Thursday, October 14, 2010

10112010 Empennage (Build Session 5)

Build Session 5, 10112010, 2.5 hours, 13 total

Empennage, Vertical Stabilizer Page 06-04 and 06-05

Completed Page 06-04

Completed through Page 06-05 Steps 1 & 2

Rivet Count 18 Solid 8 Pulled

Riveting in the K1000-3 Nutplates that will hold the Rudder brackets and bearings. I made the first of many mistakes and in my excitement and anxiety of setting my first flush rivets I squeezed the first rivet without the nut plate, chalk it up to needing practice drilling out rivets.




Flutes and deburred all the Rudder frame ribs, they are ready for priming metal to metal contact areas.






10102010 Empennage (Build Session 4)

Build Session 4, 10102010, 3.5 hours, 10.5 total

Empennage, Vertical Stabilizer Page 06-03 and 06-04

Completed through Page 06-04 Steps 1-5

Rivet Count 10 Solid 8 Pulled

Here are the Spar Parts finished and laid out for priming. I am priming metal to Metal and the exposed back of the spar for the Verical Stab


Primed using Duplicolor 160 Self etching Primer (Napa)



Pulled rivets on the Upper spar caps notice I had to use the hand puller and the wedge tool to get those rivets close in on the spar flange.




Wednesday, October 13, 2010

10082010 Empennage (Build Session 3)

Build Session 3, 10082010, 3 hours, 7 hours total

Empennage, Vertical Stabilizer Page 06-03

Completed Work on Steps 1 - 4 Both Left and Right, Match drilling Upper and Lower Spar Caps to the Rear Spar.





Match drilling the #40 and 3/16 holes for the K1000-3 Nutplates

That is a lot of #30 Holes...


10042010 Empennage (Build Session 2)

Build Session 2, 10042010, 2 hours, 4 total hours

Empennage, Vertical Stabilizer Page 06-02

Primed and riveted the Rudder Hinge Brackets:




Page 06-03: Preparing the VS Upper and Lower Spar Caps and Spar for match drilling









10032010 First Build Day


Build session 1 10032010, 2 hours 2 hours total
Empennage, Vertical Stabilizer Page 06-02

Manufactured my first parts today:
Upper and Lower Rudder Brackets with bearings


Others have talked about issues when the three aluminum pieces are sandwiched together with the bearings that the bearings did not move freely, mine move easily in all planes.
